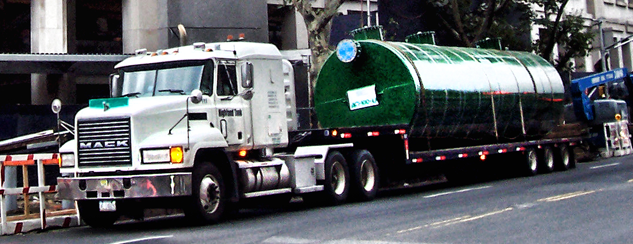

underground cylindrical
Passive Grease Interceptor How It Works

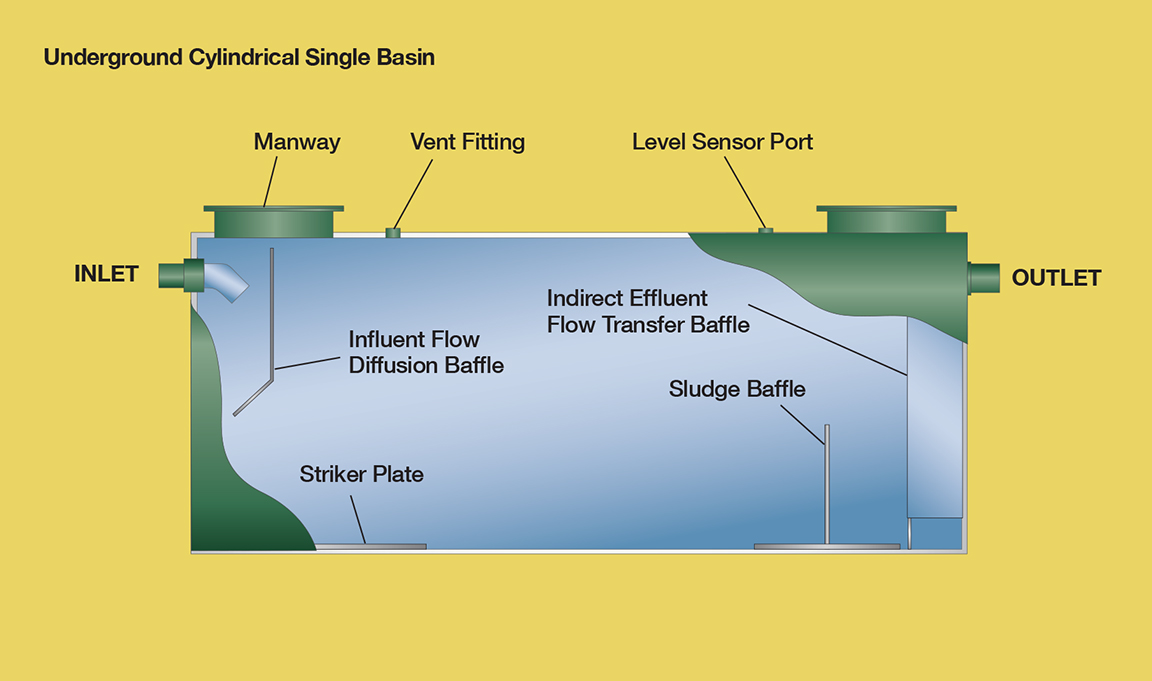

View diagram for Single-basin units
Single collection chamber with sludge baffle – simple knock-out design
Single Basin PGI
View diagram for Double-basin units
Two collection chambers and a sludge baffle. Conforms to IAPMO/ANSI Z1001
Double-Basin PGI

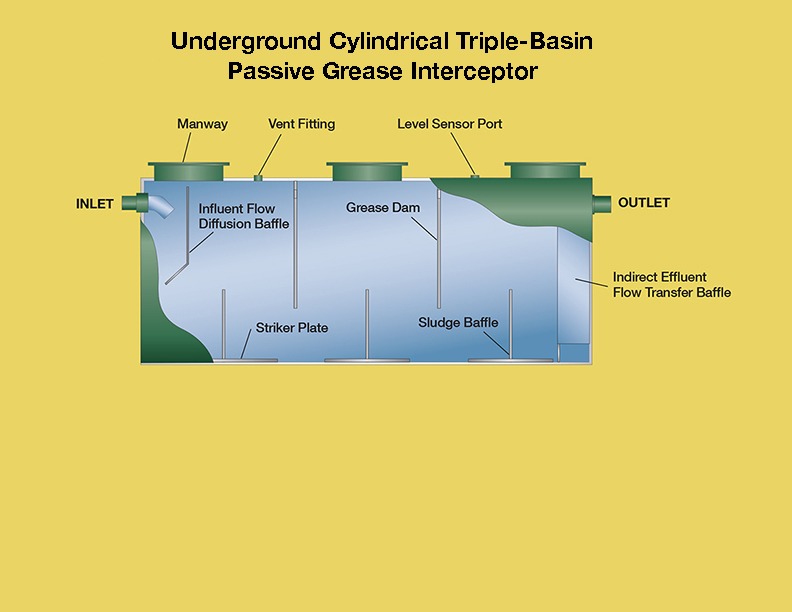

View diagram for Triple-basin units
Three basin unit for enhanced removal. Third chamber can be equipped with an effluent pump when gravity flow is not an option.
Triple-Basin PGI

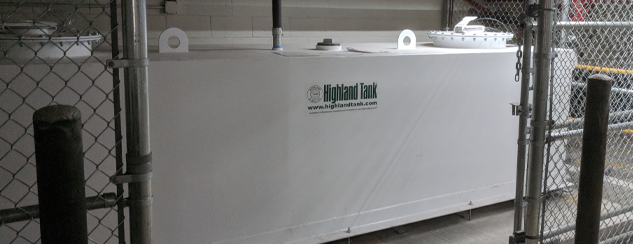

aboveground rectangular
Passive Grease Interceptor How It Works
single-basin units | click for diagram
Single collection chamber with sludge baffle
Aboveground Rectangular Single-Basin Passive Grease Interceptor

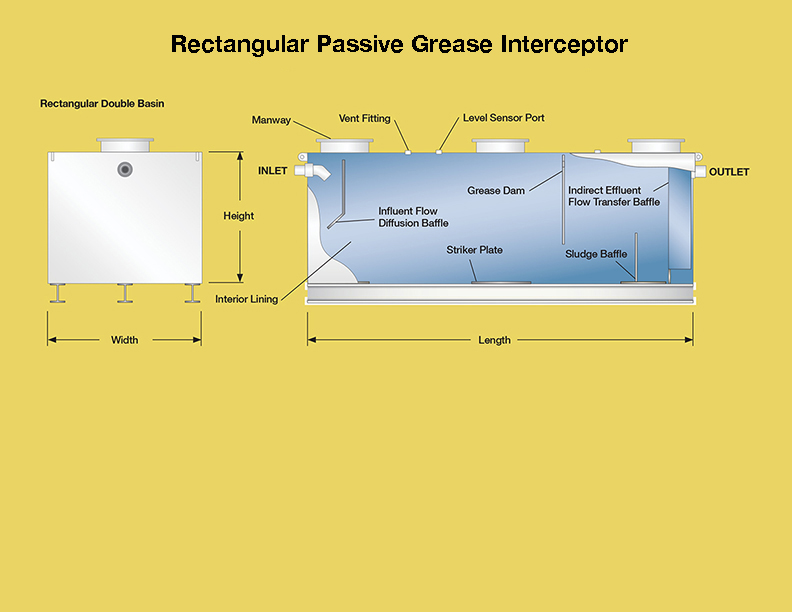

double-basin units | click for diagram
Two chamber swithchback baffle design with sludge baffle
Aboveground Rectangular Double-Basin Passive Grease Interceptor
triple-basin units | click for diagram
FOG and solids are trapped in first compartment – chambers two and three capture remaining grease
Aboveground Rectangular Triple-Basin Passive Grease Interceptor

aboveground cylindrical
Passive Grease Interceptor How It Works

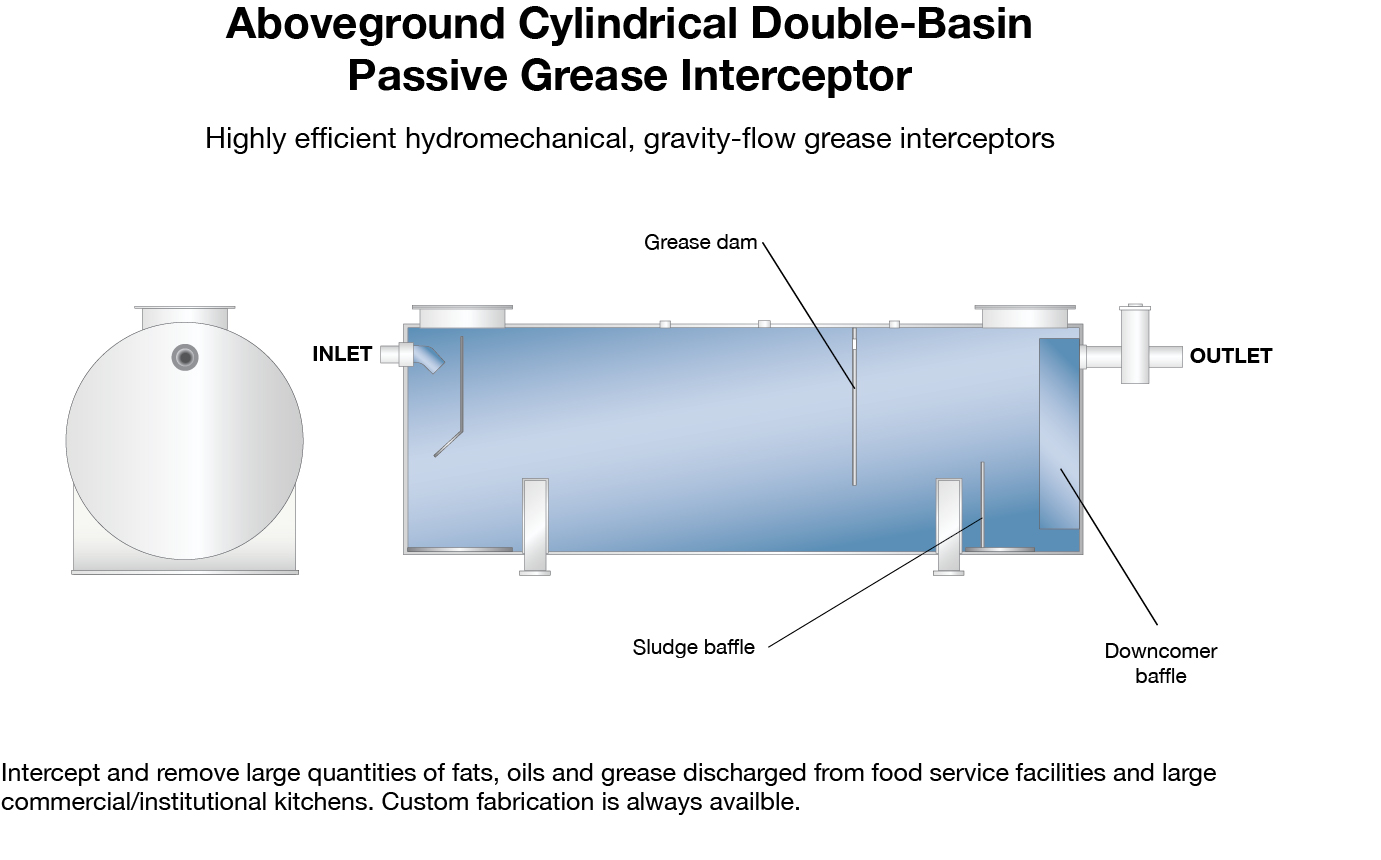

double-basin units | click for diagram
Two collection chambers and a sludge baffle. Conforms to IAPMO/ANSI Z1001
Aboveground Cylindrical Double-Basin Passive Grease Interceptor

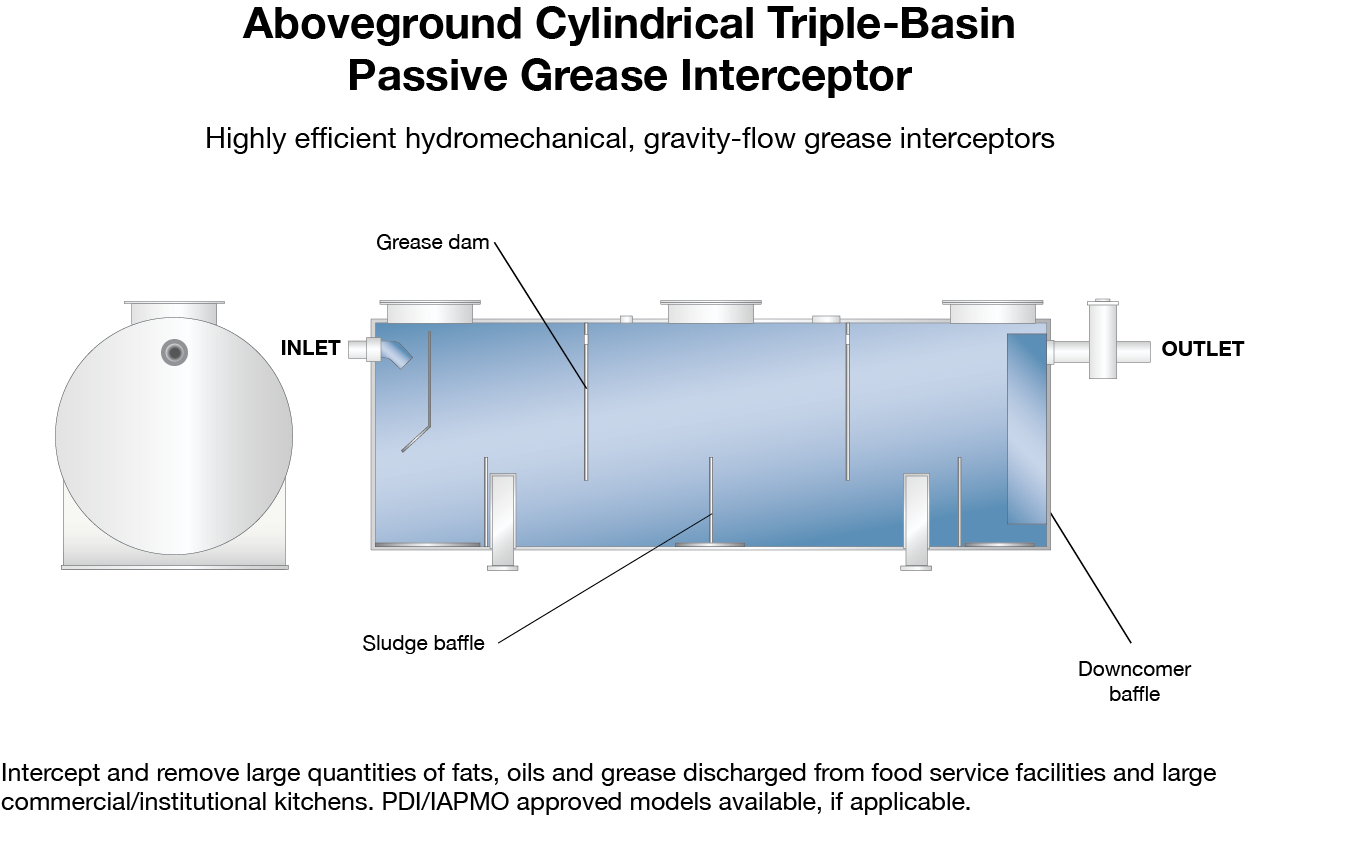

triple-basin units | click for diagram
Three basin unit for enhanced removal. Third chamber can be equipped with an effluent pump when gravity flow is not an option.
Aboveground Cylindrical Triple-Basin Passive Grease Interceptor

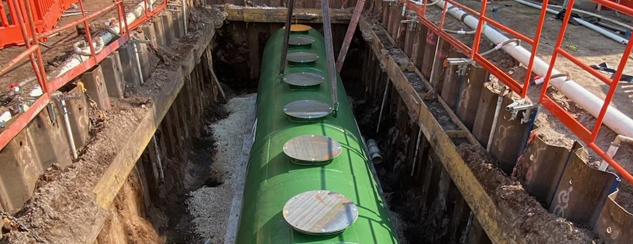

florida pgi
Highland Tank passive grease interceptors comply with State of Florida Department of Health, Standards for On-site Sewage Treatment and Disposal Systems, 64E-6.013: Construction Materials and Standards for Treatment Receptacles. These grease interceptors are designed to meet site specific requirements.
Click icon below for drawings
