aboveground horizontal
UL-142 tanks

The High-LINK® Integrated Systems couples Highland Tank’s superior steel tank products with state-of-the-art electronic management devices and proprietary software to provide real-time data to decision-makers. With our High-LINK® applications you will have the power to optimize the usage and transfer of all your liquid operations.  Learn more here.

standard aboveground horizontal tanks

UL-142 aboveground steel storage tanks are engineered and designed to provide a sensible and safe solution to the storage of petroleum products and chemicals at bulk plants, transportation facilities, industrial sites, military and commercial airports.

click for diagram

Click icons below for drawings, specs and literature

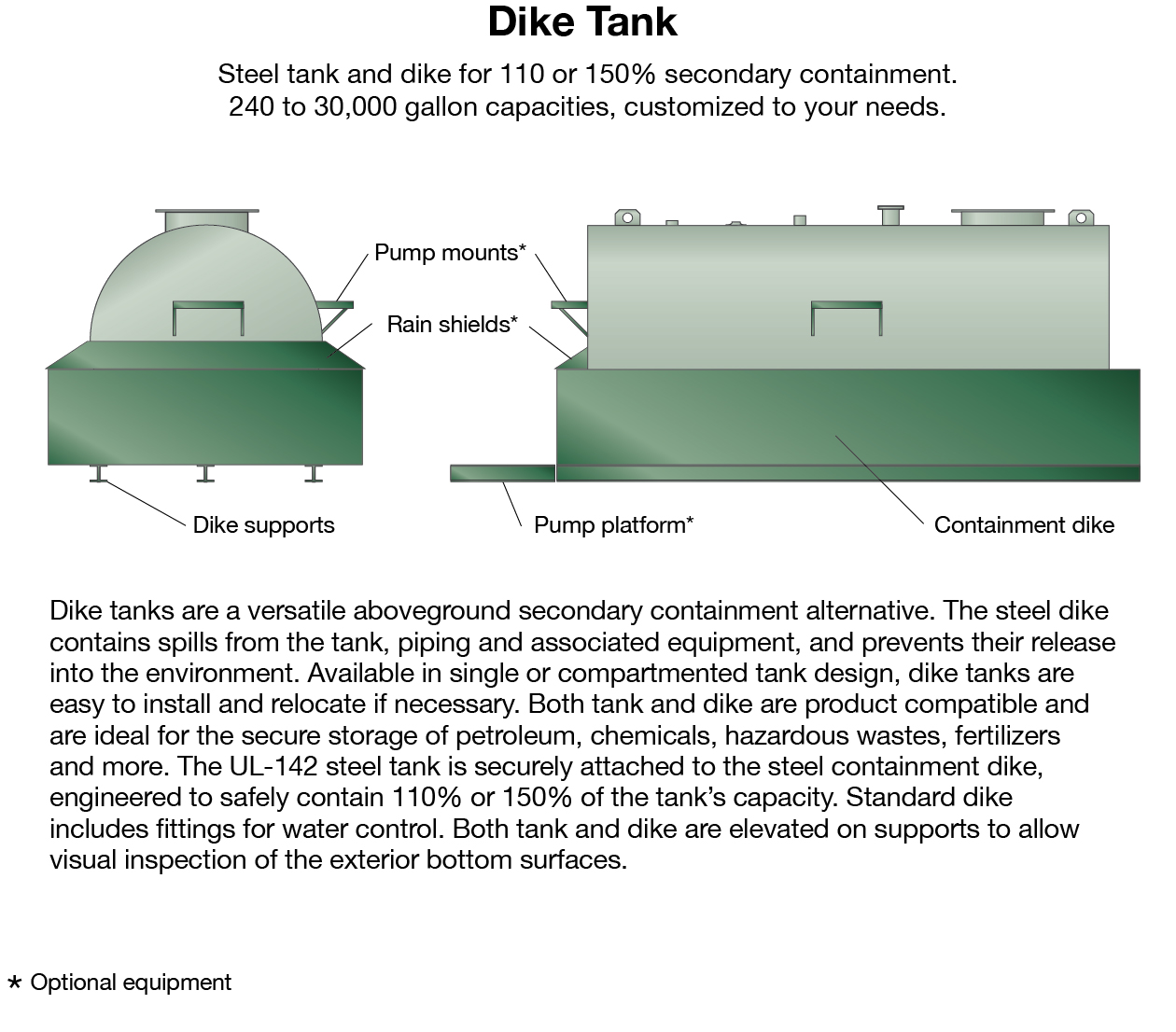

dike tanks

Dike Tanks are a versatile secondary containment alternative for the secure storage of petroleum, chemicals, hazardous waste, and fertilizers. Dike Tanks are quick and easy to install or relocate. Dike Tanks meet NFPA 30 codes for primary and secondary containment.

click for diagram

Click icons below for drawings, specs and literature

standard design

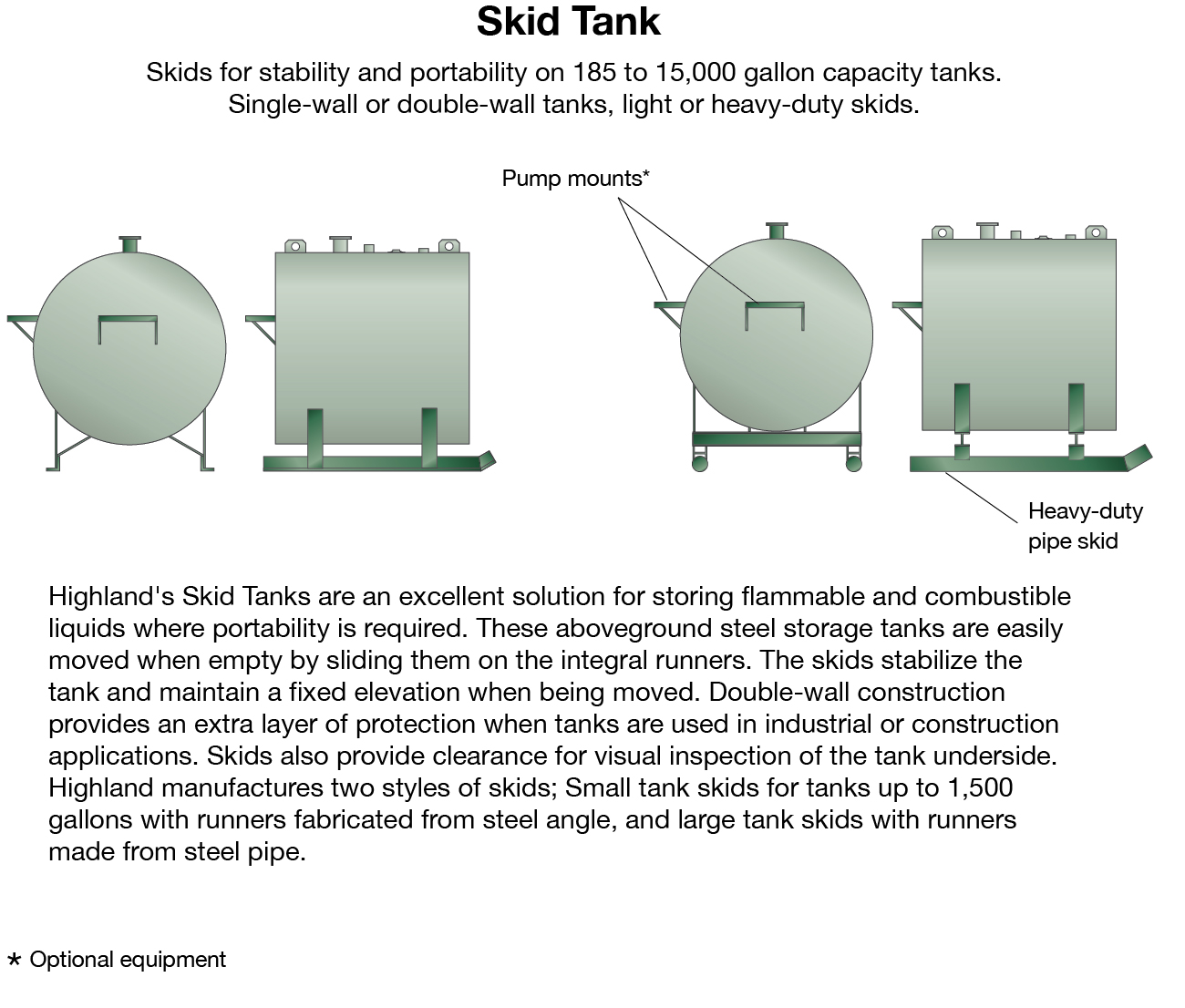

skid tanks

Skid Tanks are an excellent solution where portability is required. They are easily moved when empty by sliding them on the integral runners. The skids stabilize the tank and maintain a fixed elevation when being moved.

click for diagram

Click icons below for drawings, specs and literature

standard design

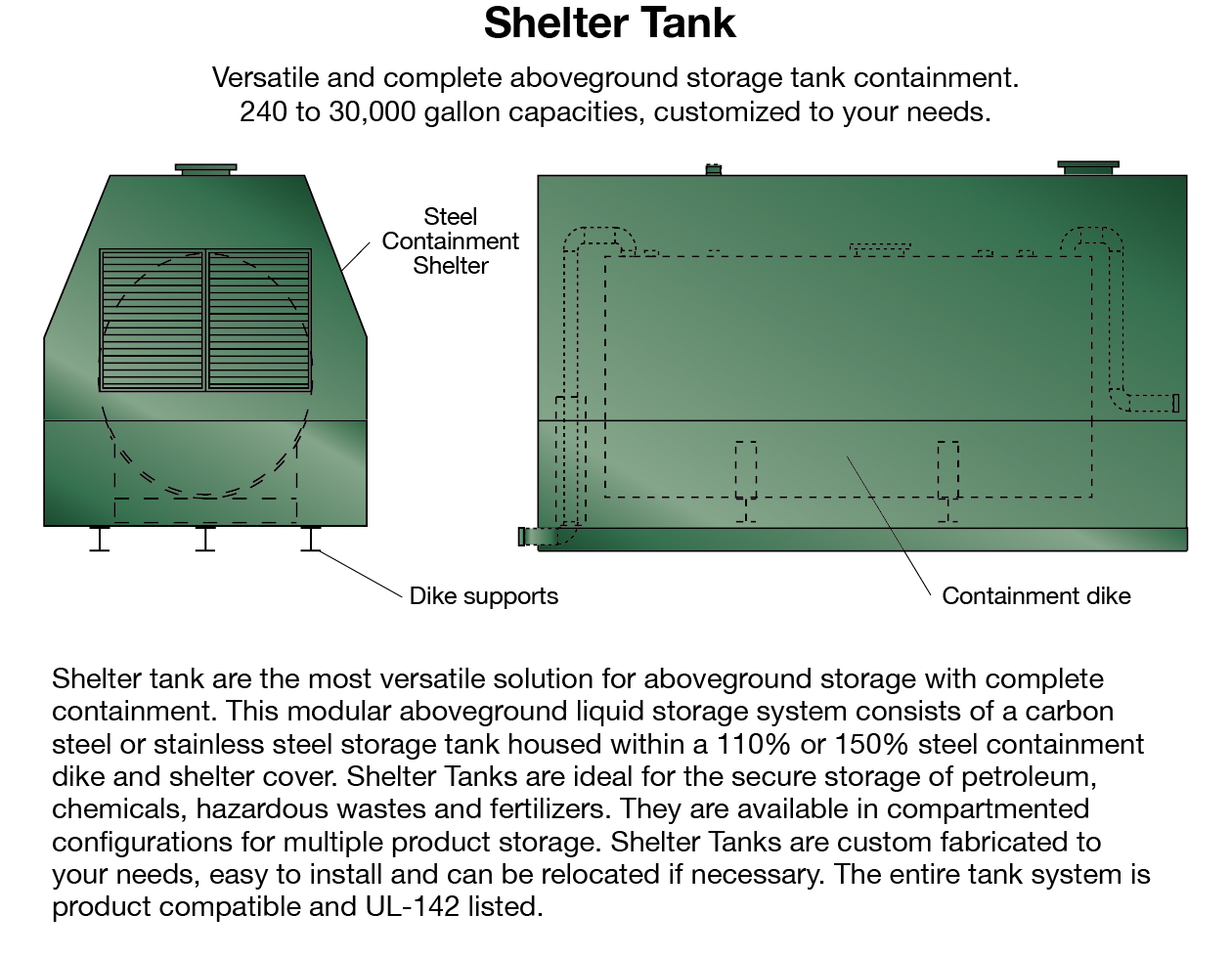

shelter tanks

A highly versatile solution for aboveground storage with complete containment, Shelter Tanks are ideal for the secure storage of petroleum, chemicals, hazardous wastes, and fertilizers.

click for diagram

Click icons below for drawings, specs and literature

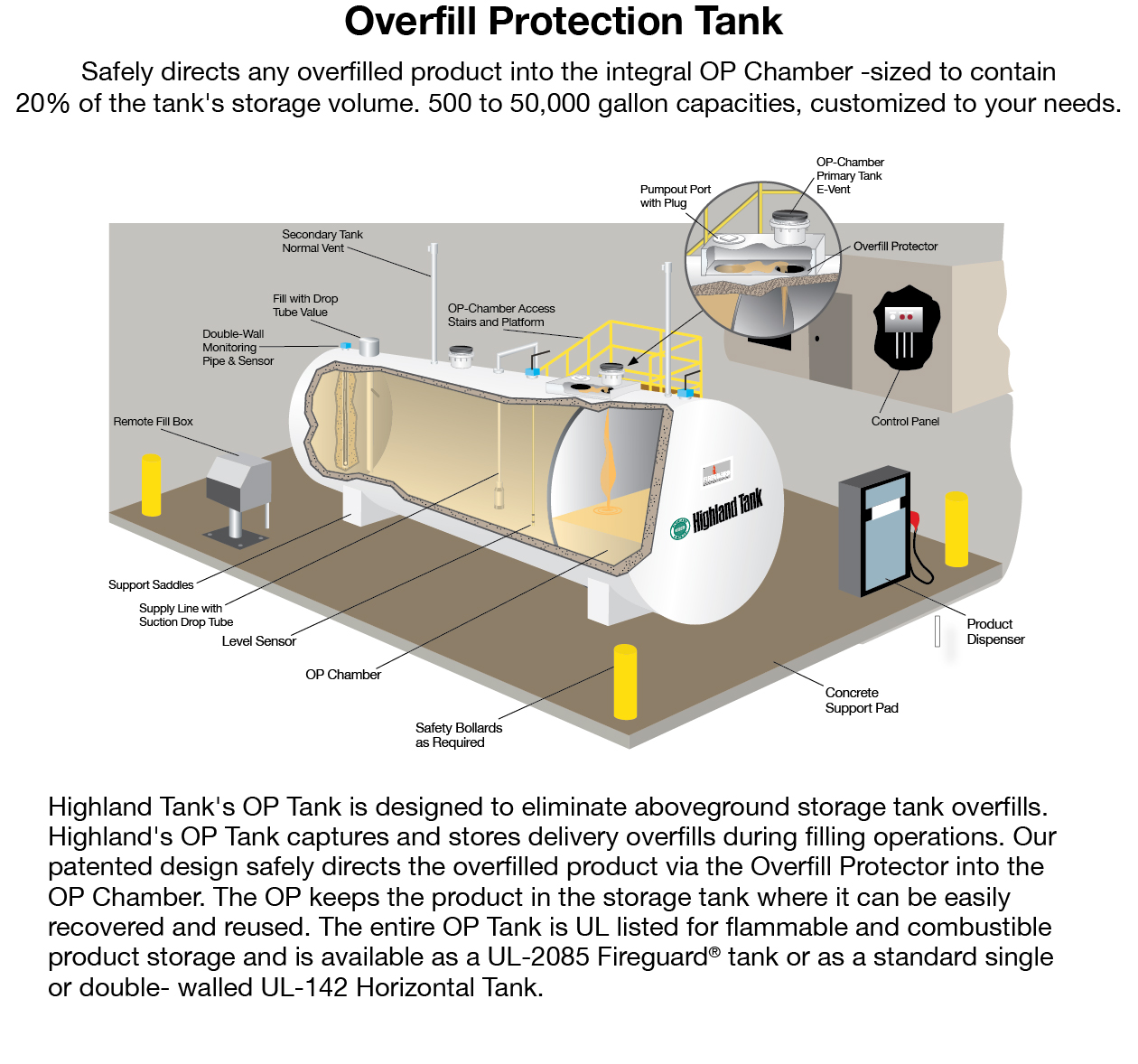

overfill protection tanks

Highland Tank’s OP Tank is designed to eliminate the worry, the mess, and the danger of aboveground storage tank overfills. Highland’s OP Tank captures and stores delivery overfills resulting from mistakes or failures during filling operations. Our patented design safely directs the overfilled product via the Overfill Protector into the OP Chamber. The OP Chamber is large enough to contain a spill of at least 20% of the tank’s storage volume.

click for diagram

Click icons below for drawings, specs and literature

standard design

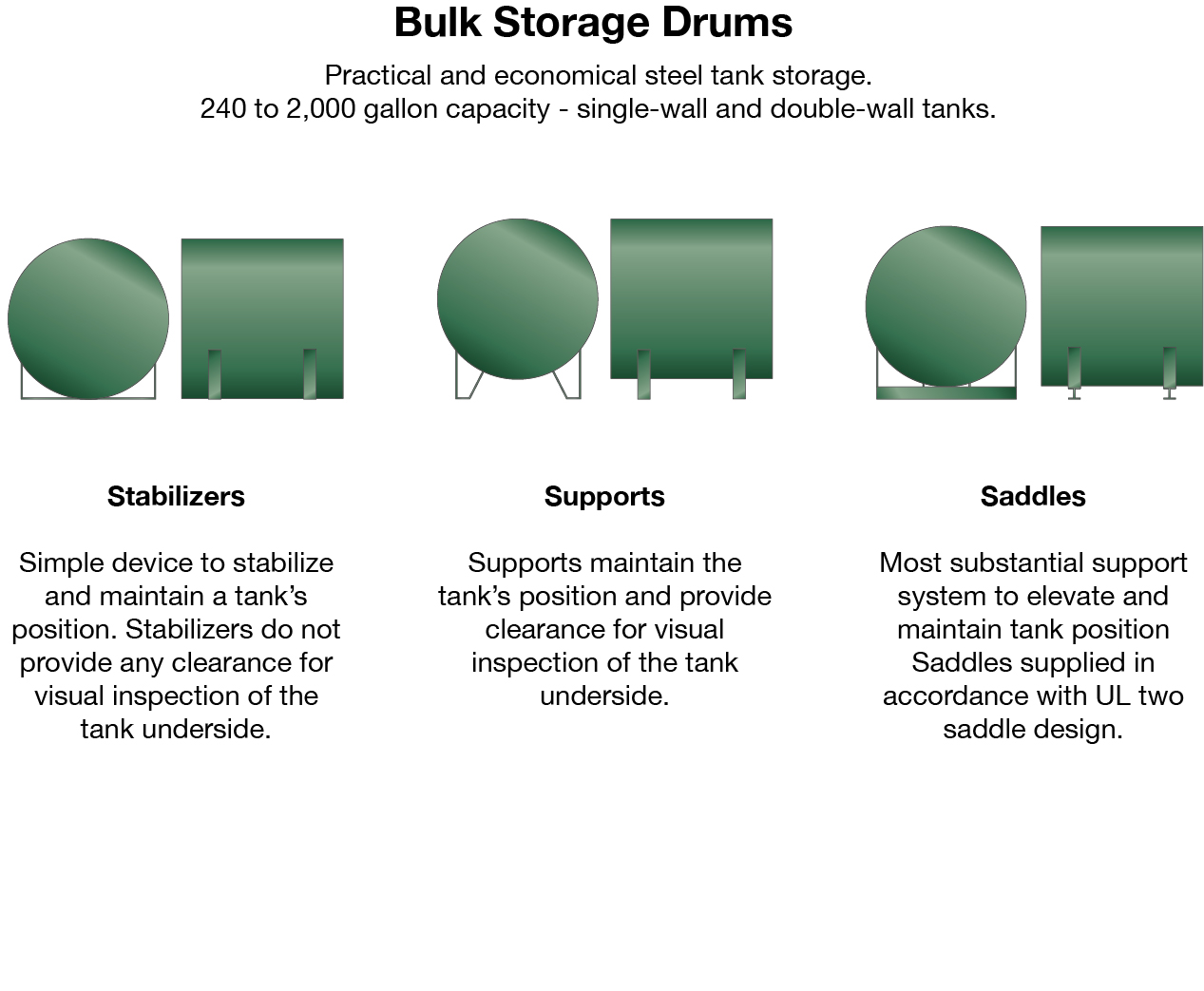

bulk drums

Horizontal Bulk Drums are practical and economical. They conveniently store more product in less space than 55-gallon drums and allow for bulk purchasing at lower prices. Bulk Drums are available as single-wall and double-wall designs with multiple support options.

click for diagram

Click icons below for drawings, specs and literature

standard design

flameshield® double-wall tank certification

The Flameshield® option is available on all UL-142 double-wall aboveground steel storage tanks manufactured by Highland Tank.  Flameshield® labeled tanks are manufactured to strict Steel Tank Institute (STI) specifications and are subject to the STI’s Quality Assurance program. Each tank carries the Flameshield® and SwRi 97-04 labels. All Flameshield® tanks employ a 360° outer wrap.  Flameshield® tanks are available in a wide range of sizes from 240 to 60,000 gallons. Customized compartments and support systems are also available.
